This solar camera is equipped with 3MP HD resolution for good
clarity of images and videos. The wireless solar security camera
frees you from annoying cablings. It doesn’t need certified
electricians to do the cabling. This solar ip camera has
high-sensitivity PIR sensor, which will be react within 0.2s when
there is a human motion detected. False alarms due to rains or
insects, will be minimized with the design of smart AI human motion

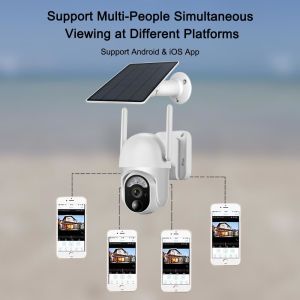

detection. This smart solar powered outdoor camera supports
multiple users viewing simultaneously, you can share the monitor
with your family members or friends wherever they are (PC is not
supported). Gain more assurance with YADAS smart security cameras
to make your life easier, safer and more comfortable.
Key Features of YDS40 Solar Powered IR Floodlight
PIR Human Detection | 4G (ALL Netcom) | 10400mAh Built-in Battery |
| 110oViewing Angle | Full Color Night Vision | 0%~90%RH Working Humidity |
| Up to 12Meters PIR Distance | 3.6mm Lens | Built-in Microphone and Speaker |
Advantages to Get YDS40 Solar Camera Security Outdoor
1. Good Cellular Reception: This 4G camera can receive good cellular
signals based on hundreds of test results.
2. Two-way Audio: Makes you are home when you are not. Easy to
communicate with visitors or drive out intruders.
3. The design with smart humanoid sensors helps to reduce the false
alarms caused by inserts, animals, etc.
4. Real-Time Recording: The video will record as long as the PIR
motion detection is triggered. Videos will be recorded
to memory card/ Cloud. You can review, playback, forward, download
those videos.
5. No Need Wi-Fi: This YDS40-4G is a 4G solar security camera, which
is designed to work without WiFi Network.
6. Multiple Remote Access: Free to invite family members to look out for what you care about simultaneously.
Technical Details for YDS40 Solar Powered Outdoor CCTV
| Alarm Mode | PIR Motion Detection Up to 12 Meters | Operating Conditions | -4oF to 140oF (-20oC to 60oC), Weather Resistant (IP65 Rating) |
| Two-Way Audio | Built-in Speaker And Microphone | Full Color Night Vision | 0.00001LUX |
PT Angle | Pan 355o / Tilt 120o | Lighting | 4* LED Warm Lights Distance (Up to 30M) |
| Two-Way Audio | Built-in Speaker And Microphone | Compression | H.265 |
| 4G Camera Connection | 4G { TD-LTE, TD-LTE/ LTE FDD TD-LTE/LTE-FDD(ALL Netcom)} | Power Type | 5W Solar Panel + 10400mAh Built-in Battery |
| Recording Time | 5s, 10s, 20s, 30s or Continuous Recording for option | Box Includes | YDS40 PTZ Camera, 5W Solar Panel, USB Charging Cable, Manual,
Screws, Qualification |
More Detailed Parameters, Please Check: YDS40-Datasheet-Mini
Solar PTZ Camera.pdf
Applications For YDS40 Solar Powered Wireless Security System
This solar wireless outdoor security camera is often referred to as
cellular security camera or shortened as SIM camera, operate on the
4G/3G phone network to transmit image and video signals wirelessly,
suitable for many scenarios, such as farms, construction site, fish
pond, mountainous area, factory, courtyard, workplace, orchard,
mine, granary, vineyard, warehouse, woods, garden, garage,campers,
ranch, etc. This solar ptz camera will be triggered by motion
events. With an ultra-wide viewing angle of 355o pan & 140o tilt, YDS40 sim card camera will be a good solution for you to
monitor your valuable properties.
Q&A For YDS40 Solar Security Camera With DVR
1. Q: Can I take the SD card out, insert it into a sd card reader on your
computer and view the recorded videos?
A: Of course.
2. Q: How to save the cellular data of this 4G surveillance camera?
A: The cellular data consumption of 4G IP cameras depends on how many
times you watch live streaming, receive
motion detection, how many recording times you set from the APP, etc. So
reducing the frequency of live streaming,
minimizing false alarms and useless motion-triggered recordings, lowering the 4G
camera resolution or frames
per second and decreasing the recording times will help to maximize the data plan of 4G
wireless security cameras.
3. Q: Does this solar cctv camera support viewing from PC or browser?
A: No, This low consumption solar system security camera only supports
phone viewing, not for PC or browser monitoring.
4. Q: What is the angle view on this solar video camera (without
panning)?
A: The angle view of this best wireless security camera with solar
panel is 110 degrees.
5. Q: What is the maximum storage card should I put in? Will 256Gb work?
A: The maximum storage card is 128GB.
